Detailed introduction

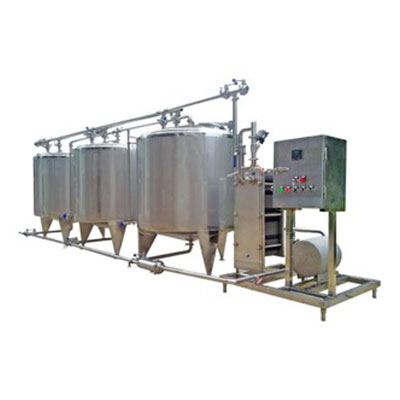

　　Automatic CIP cleaning (Cleaning In Place) refers to the equipment (tanks, pipes, pumps, etc.) and the entire production line without manual disassembly, in the closed circuit in accordance with the set procedures for cyclic cleaning and disinfection. The automatic CIP cleaning system produced by our company has the characteristics of safety, energy saving, high efficiency, convenient operation and maintenance. The automatic CIP cleaning system consists of acid, alkali, hot water, pure water tank, concentrated acid, concentrated alkali tank and heat exchanger. It can automatically configure acid-base concentration according to user's settings. Users can set different cleaning processes, different cleaning temperatures, cleaning time, intelligent and convenient, one-button operation.
　　Fully automatic CIP cleaning is equipped with various functions such as water intake and drainage, alkali addition, heating, acid and alkali concentration measurement and control, CIP, liquid level display and measurement and control, equipment self-cleaning, etc. By using PLC logic program control and setting LCD screen of man-machine dialogue, the setting and adjustment of cleaning time, temperature, concentration and flow rate can be realized. Manual CIP is a manual valve instead of pneumatic automatic valve. It is equipped with an automatic control instrument for alkali and acid concentration. The liquid level is displayed by a glass connecting pipe, and the heat exchanger is selected by coil and plate. Regardless of the form, the pressure and flow of cleaning can match the cylinder and pipeline cleaned most reasonably, and the residual liquid can be washed out. Major external accessories can be imported (APV, GEA, Afravah, Spacek, SMC, Kang Maosheng, FESTO, Siemens, etc.) and domestic parts. The material of the whole equipment is made of SUS304 or 316L stainless steel. The inner walls of tanks and tubes are polished up to Ra1.6-Ra08 national standard.
　　Cleaning tanks are generally set up in 2-4, respectively, containing alkali, acid, hot water, sterile water. This equipment is used in the production line of beer and beverage industry, cleaning the inner chamber of filling machine, cleaning the inner chamber and outer chamber of equipment in other industries, and its advanced degree is comparable to that of imported similar products. CIP cleaning equipment (including tanks, pipelines, heat exchangers, cleaning pumps, filling pumps, control cabinets) is composed of ancillary equipment, in which pipelines are divided into intake pipeline, discharge pipeline, heating cycle cleaning pipeline and self-cleaning pipeline. The main components of the pipeline are composed of various pneumatic control valves and on-line monitoring controllers. CIP system is composed of the above-mentioned pumps, tanks and pipelines. Unification.
　　The automatic CIP cleaning system has the following functions: it can automatically raise the liquid to the set working temperature; it can automatically add and adjust the tank liquid with the requirement of concentration; and it can follow the predetermined procedure for the object to be cleaned. Automatic cleaning; automatic adjustment of cleaning pressure according to design requirements; self-cleaning of hot and cold water inside and outside tank liquid; filtering and recycling of cleaned liquid according to different media requirements; acid cleaning of heat exchanger, etc. CIP can ensure a certain cleaning effect and improve product safety; save operation time and improve efficiency; save labor force and ensure operation safety; save energy such as water and steam, reduce detergent consumption; production equipment can achieve large-scale, high automation level; prolong the service life of production equipment.
