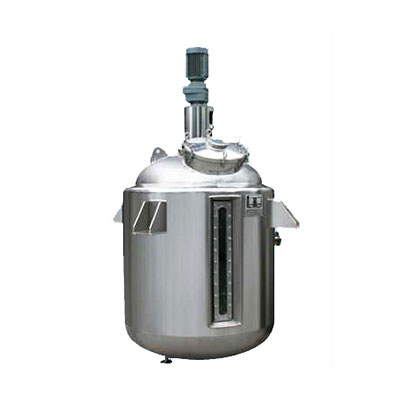

I. Overview of Mixing Tank
　　The pulp tank is a kind or a kind of tank used in the mixing process of food, pharmaceutical, chemical, dairy and other industries. It is a stainless steel tank with functions of mixing, mixing, mixing, reacting, dissolving, mixing, heating and cooling. The sizing pot is used in food, such as starch sizing, chemical painting, dairy products sizing and so on. Therefore, the slurry mixing tank is also a functional tank with reaction kettle, enzymatic hydrolysis tank, crystallization tank and so on. It has a variety of functions, and can be used in general or special purpose.
　　2. Structural Characteristics and Composition of Mixing Tank
　　1. Volume: customized according to requirements;
　　2. Inner tank body: inner surface mirror polishing treatment roughness Ra < 0.4?M; outer surface mirror polishing of lower and lower head, straight cylinder Matt treatment
　　3. Jacket forms: standard jacket, semi-circular coil jacket, honeycomb jacket;
　　4. Thermal insulation materials: casting foam filled with Pearl cotton, rock wool or polyurethane;
　　5. Surface treatment of shell body: mirror polishing or 2B primary matt or sandblasting treatment;
　　6. Stirring speed: 12-150 r/min constant speed or stepless speed regulation and frequency conversion speed regulation;
　　7. Level gauge forms: glass tube level gauge, static pressure sensor level gauge, ultrasonic level gauge, radio frequency capacitive level gauge;
　　8. Equipment configuration: fast opening manhole, mirror, thermometer (digital display or dial type), sampling port, air respirator, CIP cleaner, material and liquid inlet and outlet, spare port, steam inlet and outlet, cooling water inlet and outlet, etc.
　　9. Material: inner tank SUS304 or SUS316L; jacket and insulation shell SUS304;
　　10. Flanging process arc transition is adopted at the welding points of the inlet and outlet nozzles, mirror, manhole and other process nozzles with the inner tank body, which is smooth and easy to clean without dead angle.
