Detailed introduction

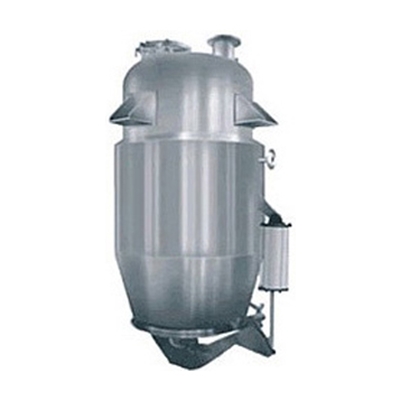

　　There are many types of extraction tank, which can be divided into straight cylinder extraction tank, normal cone extraction tank, oblique cone extraction tank, mushroom extraction tank, inverted cone extraction tank and so on. The straight cone extraction tank and the straight cylinder extraction tank are the most widely used extraction tanks in actual production. In the case of a positive conical extractor, that is to say, the shape is conical, that is to say, the upper part is straight, and the lower part is conical bottom. The structure design is also large and small, which can make the heat in the tank rise sufficiently and boil evenly. The positive cone extraction tank is used in pharmaceutical, food, chemical industry, condiment industry, such as atmospheric pressure, micropressure, water decoction, warm soaking, thermal reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery, etc. It has the advantages of high efficiency and easy operation.
　　II. Foundation Configuration of Extraction Tank
　　The extraction tank body is equipped with liquid inlet, circulation outlet, evaporation outlet, reflux outlet, cleaning outlet, SIP outlet, steam inlet, condensate outlet, feed outlet, slag discharge door, cylinder, cylinder control panel, etc. The size of the inlet can also be specified according to the pipe interface configuration of the feed pump. Circulating outlet is to extract fully, using circulating pump for forced circulation, which can not only extract adequately, but also effectively prevent logistics blocking in the filter network, which can form a flow to ensure the complete drainage. The evaporation port is used for evaporation of the leaching solution, and the general evaporator is equipped with a foam trap to prevent foam overflow. The tank is equipped with CIP on-line cleaning system, 360 degrees without dead angle and omni-directional rotation, sanitary without dead angle, which meets the GMP standard. The size of the feeding inlet is generally 350, 400 or 500 mm, depending on the size of the tank, the size can also be specified. The design of slag discharge door adopts cylinder opening and closing. The cylinder can be lifted and rotated. It has self-locking function and is safe and convenient.
　　3. Explanation of Parameter Selection of Positive Cone Extraction Tank
　　1. The volume of extraction tank can be customized without standard. The small size is 50L-500L, the large size is 1000L, 2000L, 3000L, 4000L, 6000L and so on.
　　2. Stainless steel is generally used in the material of extraction tank, SUS 304 and SUS 316L are commonly used. Material selection is based on logistics characteristics, non-corrosive SUS 304. SUS316L can be used for slight corrosion.
　　3. With regard to the wall thickness of the extraction tank, it is generally necessary to provide the service temperature and pressure in the tank, and the service pressure and temperature of the jacket. We will calculate the wall thickness according to the pressure. Common wall thickness varies from 3 to 12 mm.
　　4. The tank configuration can be selected or specified, such as the number and size of the nozzle. Inlet, circulating, evaporating, reflux, cleaning, SIP, steam inlet, condensate outlet, feed port, slag discharging door, cylinder, cylinder control panel, etc. can be selected or fully configured by us.
　　5. Matching accessories, such as foam trap, condenser, double filter, oil-water separator, can be supplied by us in a complete set or optionally.
　　6. Other optional "liquid level control, pressure control and temperature control can be configured as required. It can not only display in situ, but also be controlled and displayed remotely. Remote control can collect extraction temperature, working time, vacuum degree, stirring speed, stirring type, high and low liquid level.
　　7. Most of the normal conical extraction tanks are static ones. According to the different characteristics of materials, mixing systems can be configured to form dynamic extraction tanks.
　　For more information on parameters, configuration and instructions, please call.
