1. Overview of the equipment of spherical concentrator for beer fermentation tank and spherical cryogenic concentrator:
　　Vacuum concentrator is also called vacuum vacuum vacuum concentrator. The equipment can be used for concentrating, distilling and recovering organic solvents from small batches of liquid materials in pharmaceutical, food and chemical industries, as well as evaporating and recovering wastewater from production. It is mainly suitable for pilot production or laboratory experiments in enterprises with small production capacity. The equipment can be operated under negative or atmospheric pressure, and can also be used for continuous or intermittent production. It can be applied to many kinds of materials and has strong versatility.

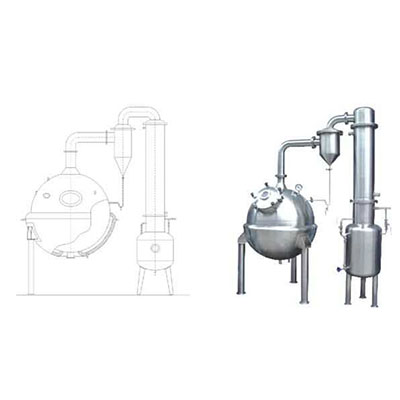

　　The spherical concentrator is mainly composed of four parts: the main body of the concentrator, the condenser, the vapor-liquid separator and the liquid receiving barrel. It can be used in the concentrating, distillation and recovery of organic solvents in pharmaceutical, food and chemical industries. Because of the use of decompression concentrating, the concentrating time is short and the effective components of the heat-sensitive materials are not destroyed. The contact parts of the equipment and materials are made of stainless steel. It has good corrosion resistance and durability.
　　2. Equipment structure of spherical concentrator of beer fermentation tank spherical cryogenic concentrator:
　　The vacuum concentrator consists of vacuum concentrator, vapor-liquid separator, condenser, receiving tank and vacuum system. The main parts of the equipment are made of 304 or 316L high-quality stainless steel material, which has good corrosion resistance and meets the GMP medical standard. According to the requirements of the production process of users, the concentrator can be equipped with mixing system, and explosion-proof motor, brand motor and vacuum system can be selected. Frequency conversion speed regulating motor; heating mode can be steam heating or electric heating.
　　3. The working principle of spherical cryogenic concentrator of beer fermentation tank:

　　The vacuum concentrating tank is provided with a jacket and an insulation layer, and the jacket is heated by steam or heat conducting oil, thereby indirectly heating the material in the concentrating tank to boiling, and the foam with effective components in the two steam evaporated is separated from the vapor-liquid separator in the reflux tank, and the remaining steam is recovered by the condenser to the liquid receiver.
