Detailed introduction

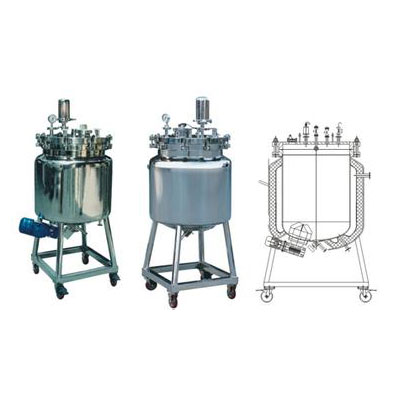

　　I. Overview of Mobile Liquid Distribution Tank
　　Distribution is the process of making liquid preparations with volume, concentration, dispersion and uniformity from raw materials, dispersing media (solvents) and additives according to operation rules. The container used to realize this process is called distribution tank. Mobile dispensing tank, as its name implies, is a mobile dispensing tank, that is, with mobile casters can be used in different locations or different workshops in the workshop. Mobile liquid dispensing tank is suitable for the preparation and storage of liquid materials in Chinese medicine, food and chemical industry. It can be filled with steam or cold water in the jacket to keep the materials at suitable temperature. It is the preferred equipment for injection, infusion, concentration and dilution of liquid medicine.
　　Distribution tank is generally a fully sealed, vertical structure of sanitary and clean containers, with heating, cooling, heat preservation, stirring and other functions. The tank with heating or cooling function is provided with a jacket, which can be heated or cooled by heating or cooling medium respectively, so that the medicinal liquid can be fully dissolved and dispensed by the operation of the agitator. Mobile liquid distribution tank system configuration mainly includes transmission device, mechanical seal device, temperature control device, shooting lamp, sight mirror, mixing device, manhole feeding and opening, steam inlet, condensate outlet, material outlet, sewage outlet, sampling port, 360 degree universal cleaning ball, some also have orifice plate filter device, weighing metering device, liquid level metering device, circulation device, etc. According to the requirements of process characteristics, there are single-layer liquid distribution tank, double-layer heat preservation liquid distribution tank and three-layer heat exchange heat preservation liquid distribution tank.
　　2. Structural characteristics of mobile liquid dispensing tank:
　　1. The tank body of mobile liquid distribution tank is designed with sanitary aseptic grade, and the pipe orifices are drawn to form a smooth transition, avoiding the cleaning dead angle caused by direct socket welding and ensuring the reliability and stability of the production process. Mirror polishing treatment for inner tank surface (roughness Ra < 0.4? M); mirror panel or grinding plate for outer surface, which is hygienic and beautiful.
　　2. The process interfaces all adopt ISO standard quick-loading chuck-type interfaces, which are sanitary, no dead angle, easy to disassemble and equipped with anti-corrosion gaskets. Guarantee service life.
　　3. It has on-line cleaning (CIP) and on-line sterilization (SIP) functions and meets GMP standards.
　　4. Mechanical stirring or magnetic stirring can be used. Pulp blade or impeller type or anchor type are often used in the form of stirring. Which kind of stirring should be chosen according to the material characteristics.
　　5. The inner surface is treated as mirror, and the outer surface is subglossy or the upper and lower head is subglossy. It is easy to clean without leaving dead angle.
　　6. Heating jacket can be full-jacket or half-pipe or honeycomb. According to material characteristics and heat transfer requirements, jacket form is designed to ensure heat transfer effect and save cost.
　　7. Temperature display control system and liquid level display system can be selected according to need. For those with remote output control functions required for automation, local display and manual control are used for routine operation observation.
　　8. Drawing flanging process is adopted for arc transition of pipe orifice, which is smooth and easy to clean without dead angle, ensuring the reliability, stability of production process and meeting the requirements of GMP.
　　9. Equipment seal adopts special sanitary mechanical seal, which is wear-resistant, non-polluting material and has good sealing performance.
　　10. Set up three or four legs with casters, with brakes, movable, and can stay mixing liquid.
　　Remarks: When designing and selecting mobile liquid dispensing tank, it is necessary to specify the characteristics of materials, operating conditions and the range of components. The parameters can be prepared according to the characteristics of materials. Non-standard customization is welcome and detailed inquiries can be made.
