Detailed introduction

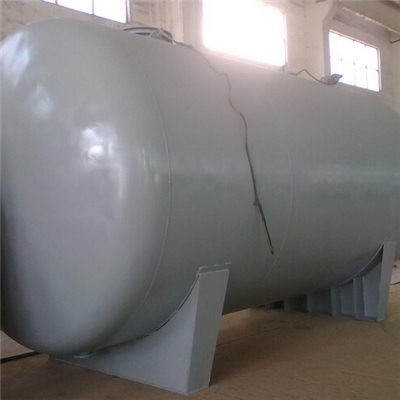

　　I. Overview of Pharmaceutical Liquid Storage Tanks
　　Pharmaceutical tanks are commonly referred to as tanks for storing or temporarily storing or caching medicinal liquids. Because of the requirement of sanitary grade for liquid medicine, sterile sanitation is unavoidable for liquid medicine storage tanks. Pharmaceutical tanks should be made of stainless steel or other materials which have been proved to be non-toxic, corrosion-resistant and free from leaking contaminated ions. The hydrophobic bactericidal filter without shedding fibers should be installed to protect its vent. The inner wall of liquid medicine storage tank should be smooth, and there should be no dead angle and trachoma in nozzle and weld. Pharmaceutical tanks use sensors that display liquid level, temperature and pressure parameters without water retention pollution. The storage tanks should be cleaned, disinfected and sterilized regularly, and the effect of cleaning and sterilization should be verified.
　　CHARACTERISTICS OF MEDICINE LIQUID STORAGE TANKS
　　1. The tank body adopts sanitary and aseptic design, and each pipe mouth adopts drawing treatment to form a smooth transition, avoiding the cleaning dead angle caused by direct socket welding and ensuring the reliability and stability of the production process. Mirror polishing treatment for inner tank surface (roughness Ra < 0.4? M); mirror panel or grinding plate for outer surface, which is hygienic and beautiful.
　　2. The process interfaces all adopt ISO standard quick-loading chuck-type interfaces, which are sanitary, no dead angle, easy to disassemble and equipped with anti-corrosion gaskets. Guarantee service life.
　　3. It has on-line cleaning (CIP) and on-line sterilization (SIP) functions and meets GMP standards.
　　4. The inner surface is treated as mirror, and the outer surface is subglossy or the upper and lower head is subglossy. It is easy to clean without leaving dead angle.
　　5. Temperature display control system and liquid level display system can be selected according to need. For those with remote output control functions required for automation, local display and manual control are used for routine operation observation.
　　8. Drawing flanging process is adopted for arc transition of pipe orifice, which is smooth and easy to clean without dead angle, ensuring the reliability, stability of production process and meeting the requirements of GMP.
　　9. Pharmaceutical liquid storage tank configuration:
　　1. Quick open manhole.
　　2. Various types of CIP cleaners.
　　3. Hygienic air permeable cover for fly control.
　　4. Adjustable triangular leg.
　　5. Removable feed tube kit.
　　6. Thermometer (according to customer requirements).
　　7. Climbing the ladder (according to customer requirements).
