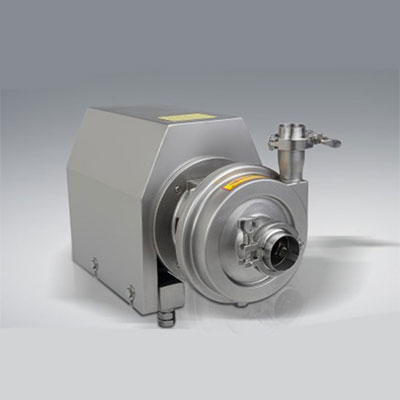

Product Description:
　　Specification: 1T-500T, 055KW-75KW
　　Material: SUS304, SUS316L
　　Speed: 2900r/min
　　90 degree exit
　　Product description
　　Technical parameters:

　　Electric machinery:
　　1. According to the configuration, the high-efficiency grade M2BAX three-phase AC motor with "ABB" brand is mainly adopted. It is designed and manufactured in accordance with IEC6O34.IE60072 standard of the International Electrotechnical Commission and meets the requirements of CE marking of the European Community.
　　2. Explosion-proof motors can be selected to meet the needs of different occasions.
　　3. Superior electrical performance, low noise, low vibration. The standard design protection level of the motor is IP55, and the insulation level is F.
　　4. Frequency: 50Hz/60Hz
　　5. Working mode: Continuous (SI)
　　6. Speed: Speed of standard pump is 2900 r/min

　　Connection mode of pump inlet and outlet
　　There will be energy loss in the pipeline, which can be divided into loss along the pipeline and loss of local resistance. The smoother the pipeline is, the smaller the loss along the pipeline, the fewer the bends, the smaller the diameter change, and the smaller the loss of local resistance. Therefore, as far as possible, do not use rough pipeline connection, and do not use pipeline sudden change in connection.
　　Wrong Connection Pipeline

　　Correct connection pipe

　　Pipeline diameter and connection distance
　　When the pump runs at a small flow rate, the efficiency is very low. The energy consumed makes the liquid temperature rise sharply. When the pump runs at a small flow rate, the backflow through the impeller clearance increases, resulting in the increase of pump pressure pulsation, vibration, noise and other hazards. Therefore, the diameter of the connecting pipe inlet should not be less than the design inlet diameter. In order to ensure more stable operation of the pump, it is necessary to connect a straight pipe with a length of about 5 - 10 times the diameter of the pipe before the pump inlet.
　　Pipeline entrance connection distance

　　Model description of YUY sanitary centrifugal pump
　　Example
