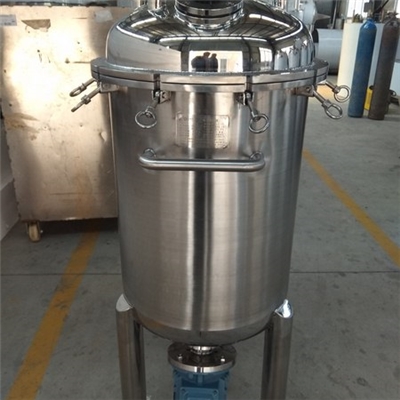

Magnetic stirring tank
　　Also known as magnetic mixing cylinder, magnetic mixing cylinder, magnetic mixing barrel, magnetic reaction kettle, etc., mainly used for dairy products and sugar and other elements and red species after mixing uniform effect. This equipment is divided into tank body, tank cover, mixing slurry and inlet and outlet. The tank body is made of S30408 or 316L material. The tank body is polished inside and outside, and there is stirring slurry inside, which plays a stirring role. The lower magnetic stirring motor.
　　purpose
　　1. The magnetic stirring tank can be used as liquid storage tank, mixing tank, temporary storage tank, water storage tank, etc.
　　2. The magnetic stirring tank is suitable for the fields of food, dairy products, juice beverage, medicine, chemical industry and bioengineering.

　　Structure elucidation
　　Magnetic stirring tank, magnetic reactor, electric heating stirring tank stainless steel stirring tank
　　Interlayer heating: heating mode is divided into electric heating and steam heating.
　　Design of flange head and cap for outer insulation layer according to vessel sealing requirement considering heating to control mixing power
　　Structural characteristics of mixing tank:
　　1. Single or double stainless steel structure.
　　2. All materials are stainless steel of sanitary grade.
　　3. Structural design is highly humanized and operable.
　　4. The transition section of inner wall of cylinder adopts circular arc transition to ensure hygiene and no dead angle.
　　To configure
　　1. Quick open manhole.
　　2. CIP cleaners with various shapes.
　　3. Hygienic air permeable cover for fly control.
　　4. Adjustable triangular leg.
　　5. Removable feed tube kit.
　　6. Thermometer (according to customer requirements).
　　7. Climbing the ladder (according to customer requirements).
　　8. Paddle agitator.
　　9. Level gauge and level control (according to customer requirements).
　　10. Anti-whirlpool board.
　　Installation of trial run
　　1. The equipment should be installed on the basis of horizontal concrete and fixed with foot bolts.
　　2. When installing, attention should be paid to the vertical of the main body and the level.
　　3. After installation, check whether the bolts in all parts are loose or not and whether the main engine warehouse door is tightened. If so, tighten it.
　　4. Configure power cord and control switch according to the power of the equipment.
　　5. After the inspection, the empty-load test will be carried out, and the normal test run will be able to carry out production.
