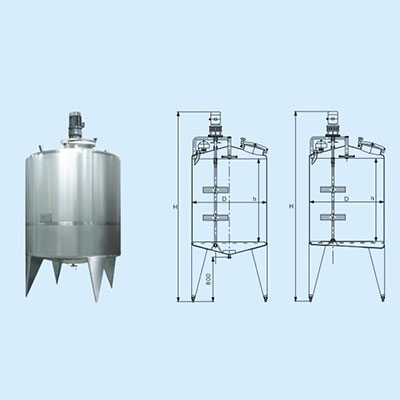

1. Composition of single-layer mixing tank
　　The mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft package device, etc. In addition, heating device or cooling device can be configured according to the process requirements. In the mixing process, material control, mixing control and other manual automatic control can be realized, which fully embodies the standardized and humanized design.
　　The mixing tank body, mixing tank cover, mixer and shaft seal can be made of carbon steel or stainless steel according to different technological requirements.
　　Flange sealing connection or welding connection can be used for mixing tank body and mixing tank cover. The mixing tank body and the mixing tank cover can open process pipe holes such as feeding, discharging, observation, temperature measurement, pressure measurement, steam fractionation and safe venting according to the technological requirements.
　　The upper part of the mixing tank cover is equipped with a transmission device (motor or reducer), and the mixer in the mixing tank is driven by a transmission shaft.
　　Shaft packaging device can be used in machine seal or packing, labyrinth seal and other forms (according to user needs to determine).
　　2. Product Characteristics of Single-Layer Mixing Tank
　　1. To determine the purpose of mixing, liquid-liquid mixing, solid-liquid suspension, gas-liquid or liquid-liquid dispersion, whether it is necessary to achieve heat transfer, absorption, extraction, dissolution, crystallization and other technological purposes;
　　2. The impeller type can be selected according to the technological characteristics.
　　3. The equipment is made of high-quality stainless steel, which is hygienic and beautiful with complete functions.
　　4. The equipment has reasonable structure design, advanced technology, durable, simple operation and convenient use.
　　5. It is an ideal chemical equipment with low investment, fast commissioning and high profit.
