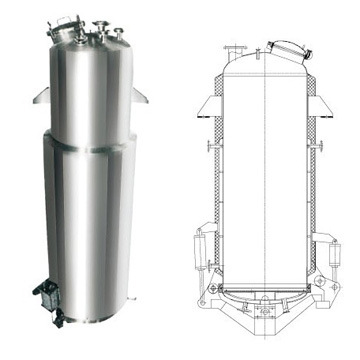

　　Summary of stainless steel extraction tank
　　Stainless steel extraction tank is our common equipment. It is used in pharmaceutical, food, chemical, condiment industry, such as atmospheric pressure, micro-pressure, water decoction, warm soaking, thermal reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery, etc. It has the advantages of high efficiency and easy operation. There are many types of stainless steel extraction tank, which can be divided into straight cylinder extraction tank, normal cone extraction tank, oblique cone extraction tank, mushroom extraction tank, inverted cone extraction tank and so on. Stainless steel extraction tanks can be used in conjunction with other auxiliary equipment, such as foam traps, condensers, dual filters, oil-water separators, etc. Oil-water separator is mainly used for alcohol extraction to collect oil. The whole set of equipment is completed in a fully sealed and recyclable system, and the organic solvent is recovered in the waste liquid at the same time.
　　2. Description of parameter selection of extraction tank
　　1. The volume of extraction tank can be customized without standard. The small size is 50L-500L, the large size is 1000L, 2000L, 3000L, 4000L, 6000L and so on.
　　2. Stainless steel is generally used in the material of extraction tank, SUS 304 and SUS 316L are commonly used. Material selection is based on logistics characteristics, non-corrosive SUS 304. SUS316L can be used for slight corrosion.
　　3. With regard to the wall thickness of the extraction tank, it is generally necessary to provide the service temperature and pressure in the tank, and the service pressure and temperature of the jacket. We will calculate the wall thickness according to the pressure. Common wall thickness varies from 3 to 12 mm.
　　4. The tank configuration can be selected or specified, such as the number and size of the nozzle. Inlet, circulating, evaporating, reflux, cleaning, SIP, steam inlet, condensate outlet, feed port, slag discharging door, cylinder, cylinder control panel, etc. can be selected or fully configured by us.
　　5. Matching accessories, such as foam trap, condenser, double filter, oil-water separator, can be supplied by us in a complete set or optionally.
　　6. Other optional "liquid level control, pressure control and temperature control can be configured as required. It can not only display in situ, but also be controlled and displayed remotely. Remote control can collect extraction temperature, working time, vacuum degree, stirring speed, stirring type, high and low liquid level.
　　7. Most stainless steel extraction tanks are static extraction tanks. According to the different characteristics of materials, mixing system can be configured to form dynamic extraction tanks.
　　For more information on parameters, configuration and instructions, please call. Welcome all friends to request the design of stainless steel extraction tank. Let's make suggestions for the development of safe, environmentally friendly and energy-saving products.
